Product Description

Tumbler Screening machine for cassava starch

Navector Tumbler Sifting machine (NTS) with its imitation of artificial screening process mechanically simulated, which supports you with a better sieving performance。

Specification                   Capacity
Feed Sizes	20 μm – 20 mm
Feed Rates	1 kg/h – 50.000 kg/h
Bulk Densities	20 – 10.000 g/l
Mesh Openings	20 μm – 20 mm
Screens Usable	Stainless steel wire or perforated plates
No. of Decks	1 – 5
Mesh Cleaning	Jumping balls/rings, Rotating brush, Ultrasound
Speed Range	180 – 280 min–1
Screen Movement	3-dimensional, settable
Acceleration	1.3 – 1.8 g / 60 – 80 mm horizontal & 5 – 40 mm vertical
Materials	Carbon steel, stainless steels 304/316
Machine Surface Treatment	Painted, brushed or mirror polished

Applications

• Food Additives such as Cassava Starch, Corn Starch Screening, Modified starch Screening
• Mesh size: 75 mesh (200miconrs ),80 mesh (180mesh) ,100mesh (150micons )
• Machine Diameter 1800mm,Double deck tumbler screening machine
• Productivity can reach 9 tons / Hour
• Screening accuracy upto 94%

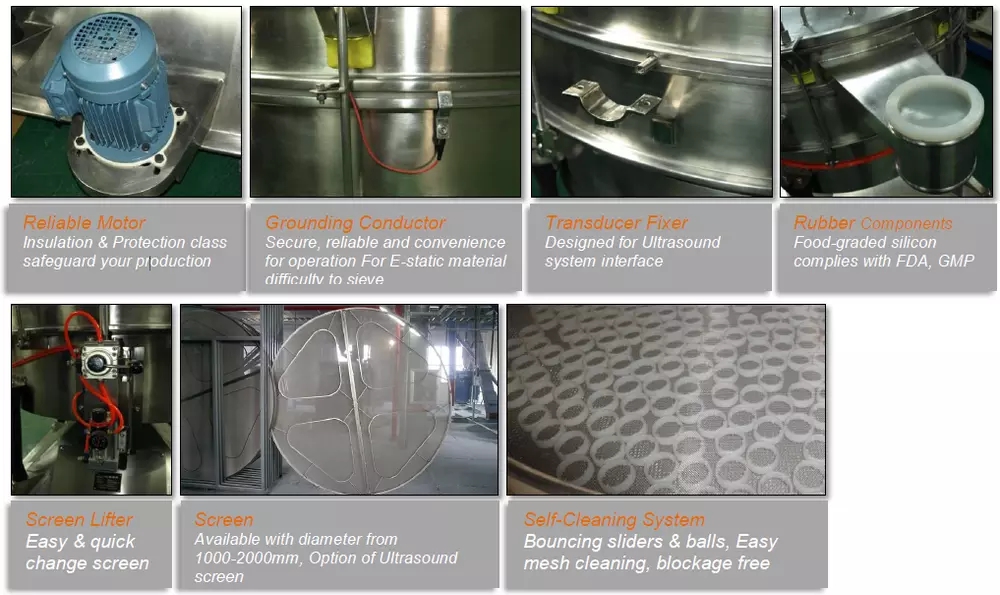

Machine Parts & Components

Company Information

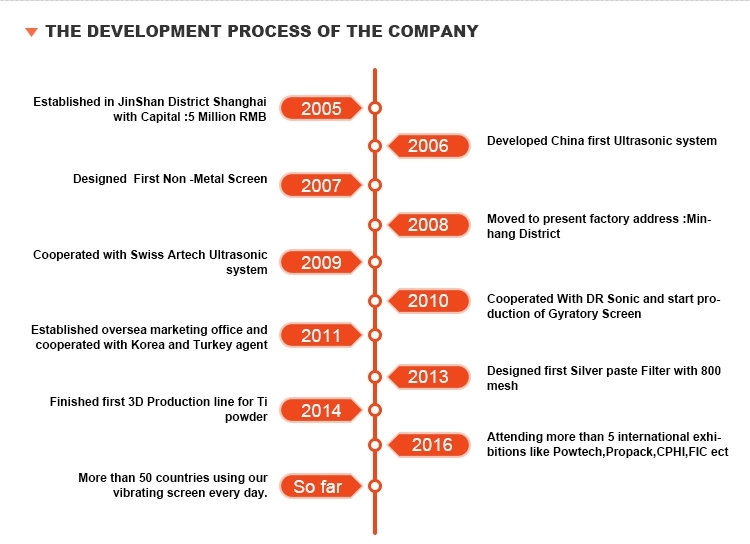

Company development

Certifications

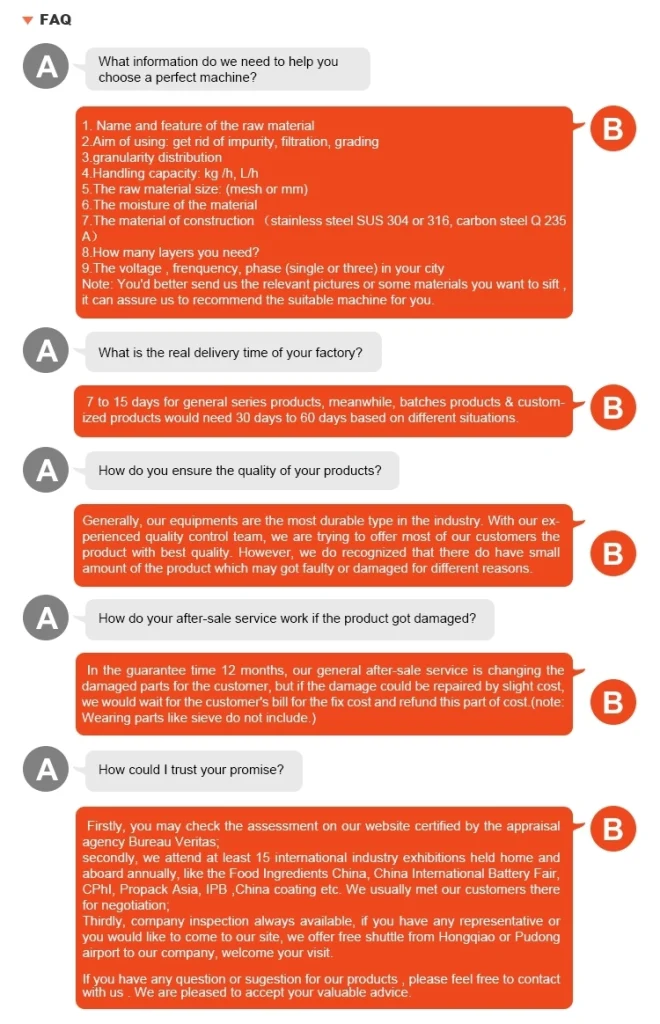

FAQ

CONTANT US !

Mobile/Line/Whatsapp: ++86 15601937055

Email: id@navector.com
